SST1 2&3 year model
The SST1 2 & 3-year model is a durable and maintenance-free gas detector, designed to provide continuous protection in hazardous environments. This model offers a compact, lightweight design, making it ideal for personal safety applications in industrial workplaces, confined spaces and other high-risk areas.
- Easy setup
- NFC
- 95dB @30cm
- Cost-effective
- Extremely stable and reliable sensors
- Largest LCD display
Description
The SST1 single gas detector provides up to three years maintenance free operation and is available in H2S, SO2, CO or O2 (2 year only) models. With its simple design, it is perfect for users looking for looking for ultimate protection while being easy to use, durable and cost effective. Simply turn on the device and it runs 24/7 for 2 to 3 years — no calibration, no battery replacement, no charging and no stress. The device is intuitive, reducing the need for extensive training. When paired with the SST Dock, the SST1 enables the fastest bump testing on the market, making fleet management effortless.
Maximise safety with this model
The SST1 is the perfect gas detection solution for industries requiring reliable, long-term protection in hazardous environments. With its maintenance-free operation, durable design, and user-friendly interface, the SST1 provides unmatched safety while keeping operational costs low. Explore our range and reach out to us when you would like to enhance workplace safety with a cost-effective and highly efficient gas detector.
Product information
- Easy setup
- NFC
- 95dB @30cm
- Cost-effective
- Extremely stable and reliable sensor
- Largest LCD display
- Rugged
| Size | 83 × 49 × 20 mm (3.3 × 1.9 × 0.8 in) |
| Weight | 88 g (3.1 oz) |
| Temperature | -40 to +140°F /-40 to +60°C |
| Humidity | 5 - 95 % RH |
| Battery life | H2S, CO, O2, SO2: 2 years H2S or CO: 3 years depending on the version |
| Event logging | Last 100 events |
| IP | IP67-68 |
| Communication | NFC |
| Shelf life | 1 year |
| Certifications & Approvals | ATEX, IECEX, UKEX II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma 0344 Int.Safe: Cl I Dv 1, Gr A,B,C,D T4 CSA C22.2 NO. 60079-0 CAN/CSA C22.2 NO 60079 UL 61010 safety requirements CAN/CSA-C22.2 NO 61010-1-12 Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU |
| Warranty | One year shelf life then two or three years from activation date depending on device type |
| Sensor | Gas measuring range | Low alarm level | High alarm level |
| H2S | 0 - 500 ppm | 10 ppm | 15 ppm |
| CO | 0 - 2000 ppm | 35 ppm | 200 ppm |
| O2 | 0 - 25.0% by vol. | 19.5 % | 23.5 % |
| SO2 | 0 - 100 ppm, | 5 ppm | 10 ppm |
| * Factory alarm set points can be changed via WatchGas Application |
SST1: 2 year fixed life single gas device
SST1-H-24 – WatchGas SST1 H2S 0-500ppm 2-year fixed life (hydrogen sulphide)
SST1-M-24 – WatchGas SST1 CO 0-2000ppm 2-year fixed life (carbon monoxide)

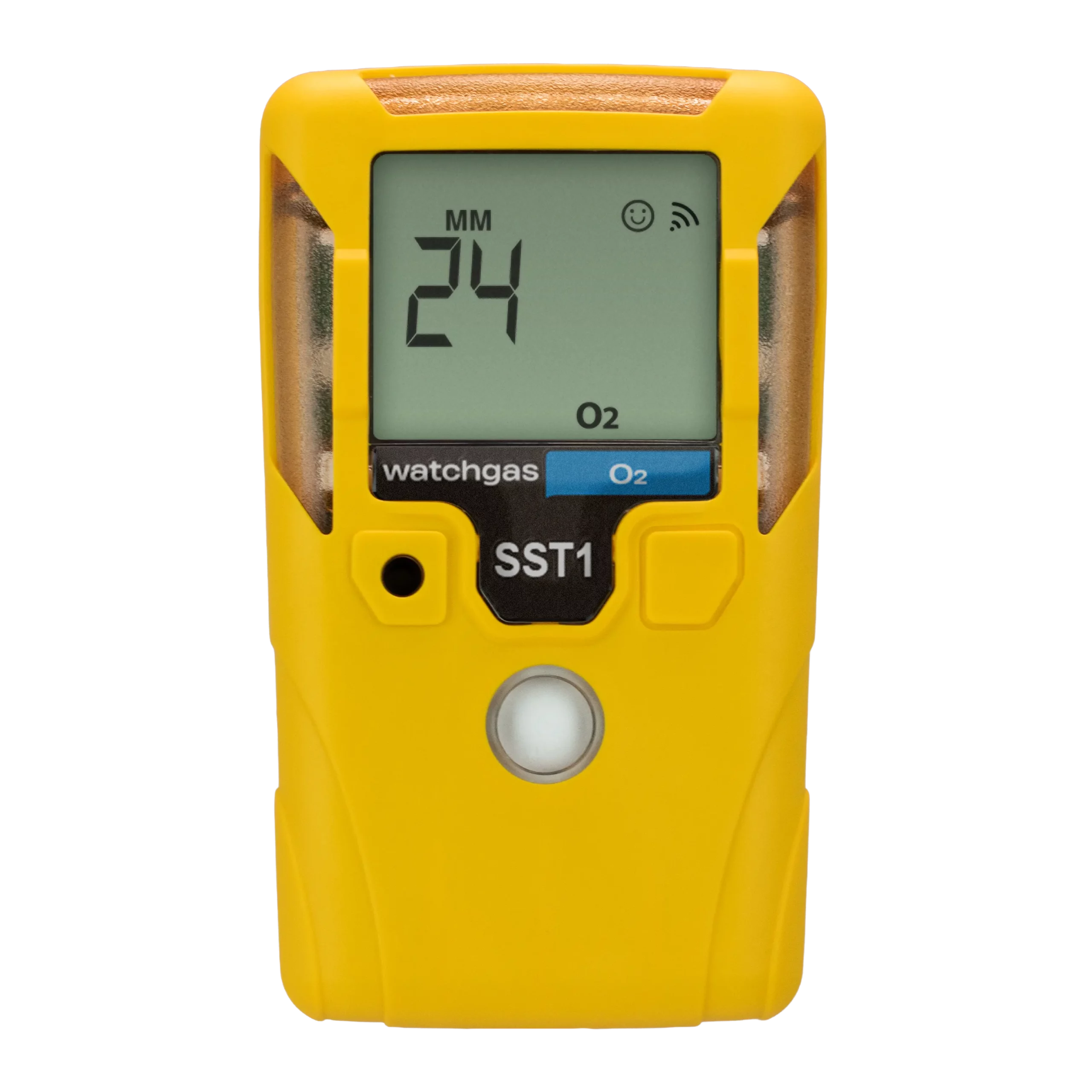

SST1-O-24 – WatchGas SST1 O2 0-25%vol. 2-year fixed life (oxygen)

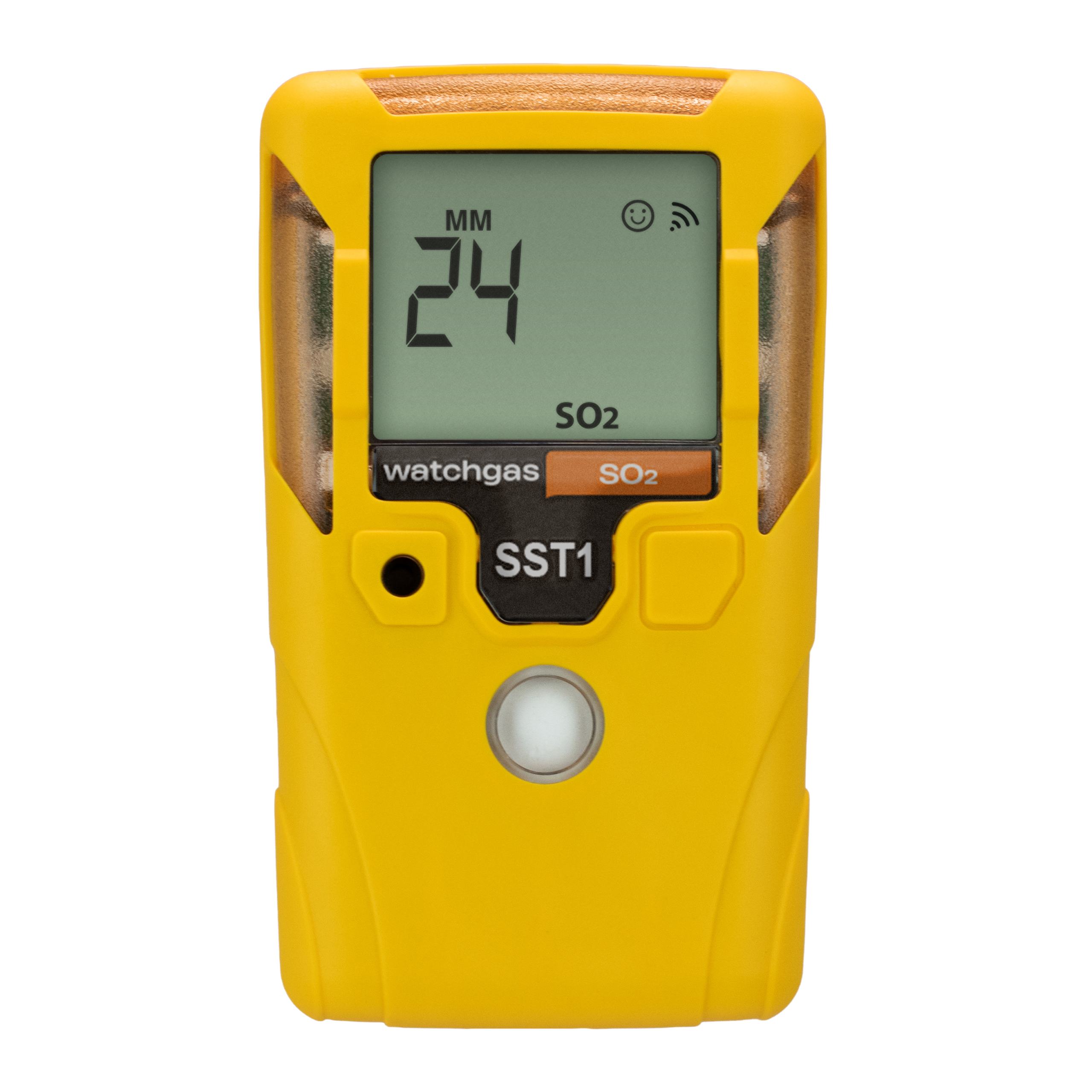

SST1-S-24 – WatchGas SST1 SO2 0-100ppm 2-year fixed life (sulfur dioxide)
SST1-H-24-P – WatchGas SST1 H2S 0-500ppm 2-year fixed life Pink (hydrogen sulphide)
SST1-M-24-P – WatchGas SST1 CO 0-2000ppm 2-year fixed life Pink (carbon monoxide)
SST1-O-24-P – WatchGas SST1 O2 0-25%vol. 2-year fixed life Pink (oxygen)
SST1-S-24-P – WatchGas SST1 SO2 0-100ppm 2-year fixed life Pink (sulfur dioxide)
SST1: 3 year fixed life single gas device

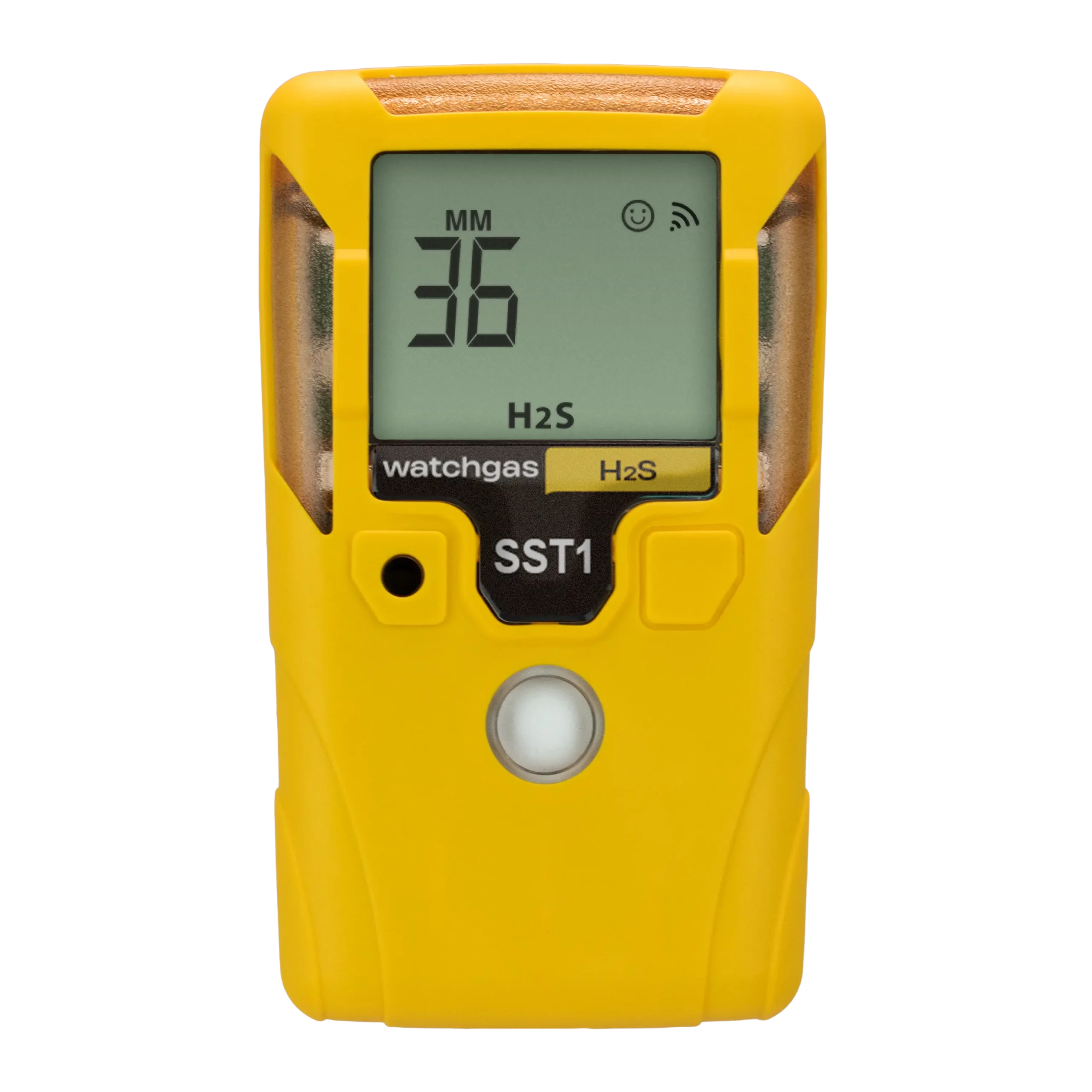

SST1-H-36 – WatchGas SST1 H2S 0-500ppm 3-year fixed life (hydrogen sulphide)
SST1-M-36 – WatchGas SST1 CO 0-2000ppm 3-year fixed life (carbon monoxide
SST1-H-36-P – WatchGas SST1 H2S 0-500ppm 3-year fixed life Pink (hydrogen sulphide)
SST1-M-36-P – WatchGas SST1 CO 0-2000ppm 3-year fixed life Pink (carbon monoxide)
Please contact WatchGas or your local WatchGas distributor for the order information on accessories and spare parts.
The device comes in yellow as standard.
