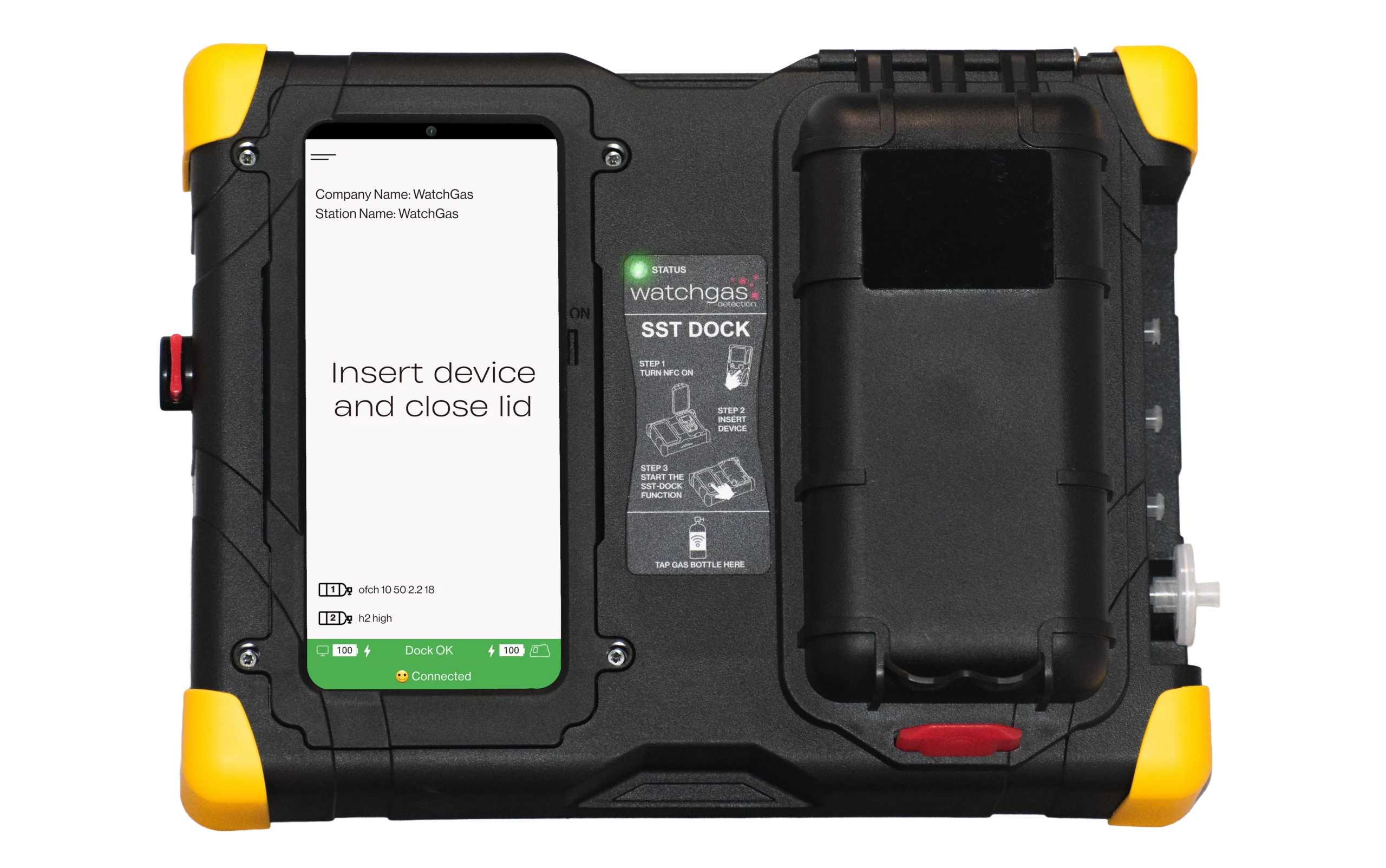

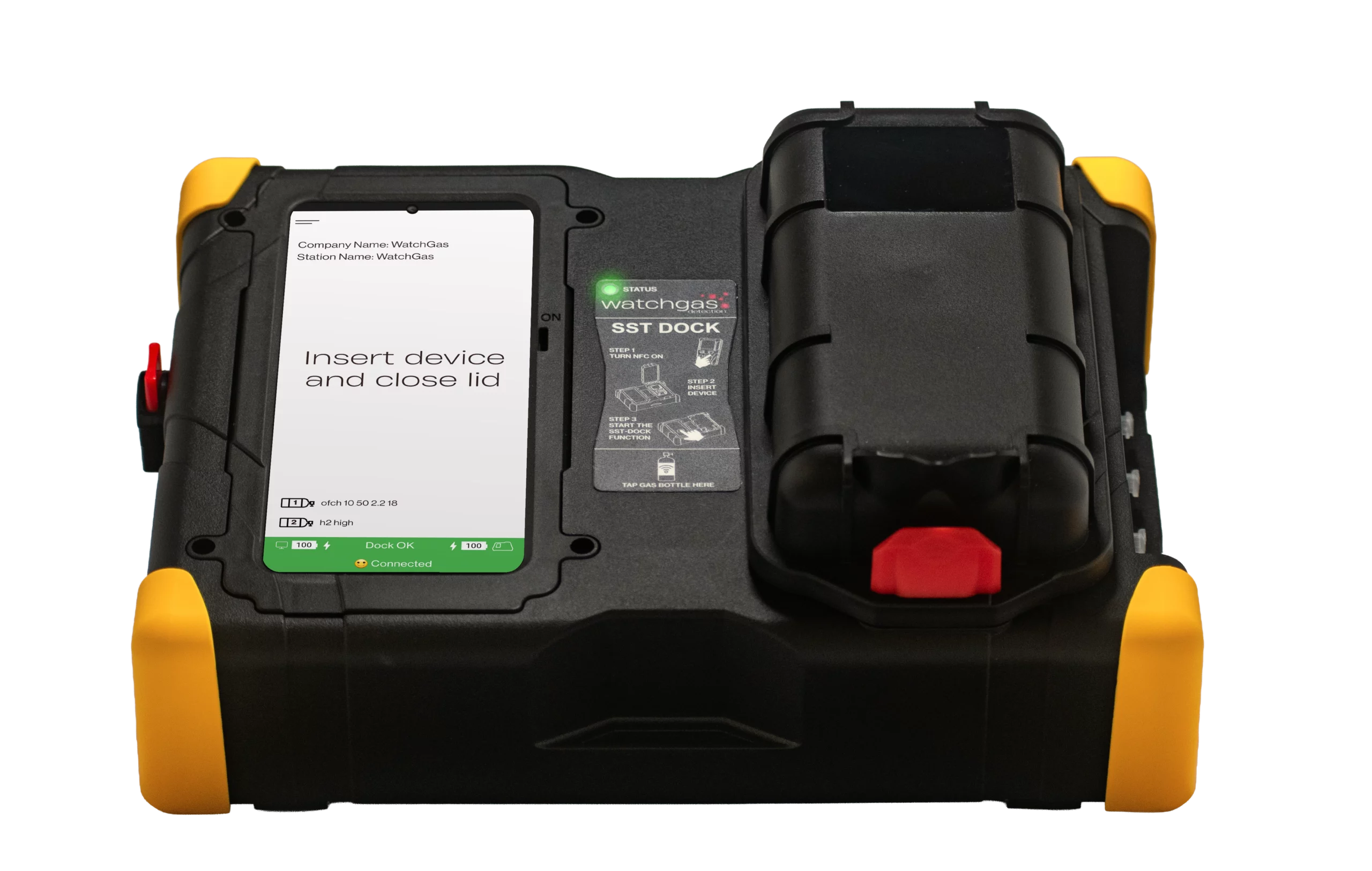

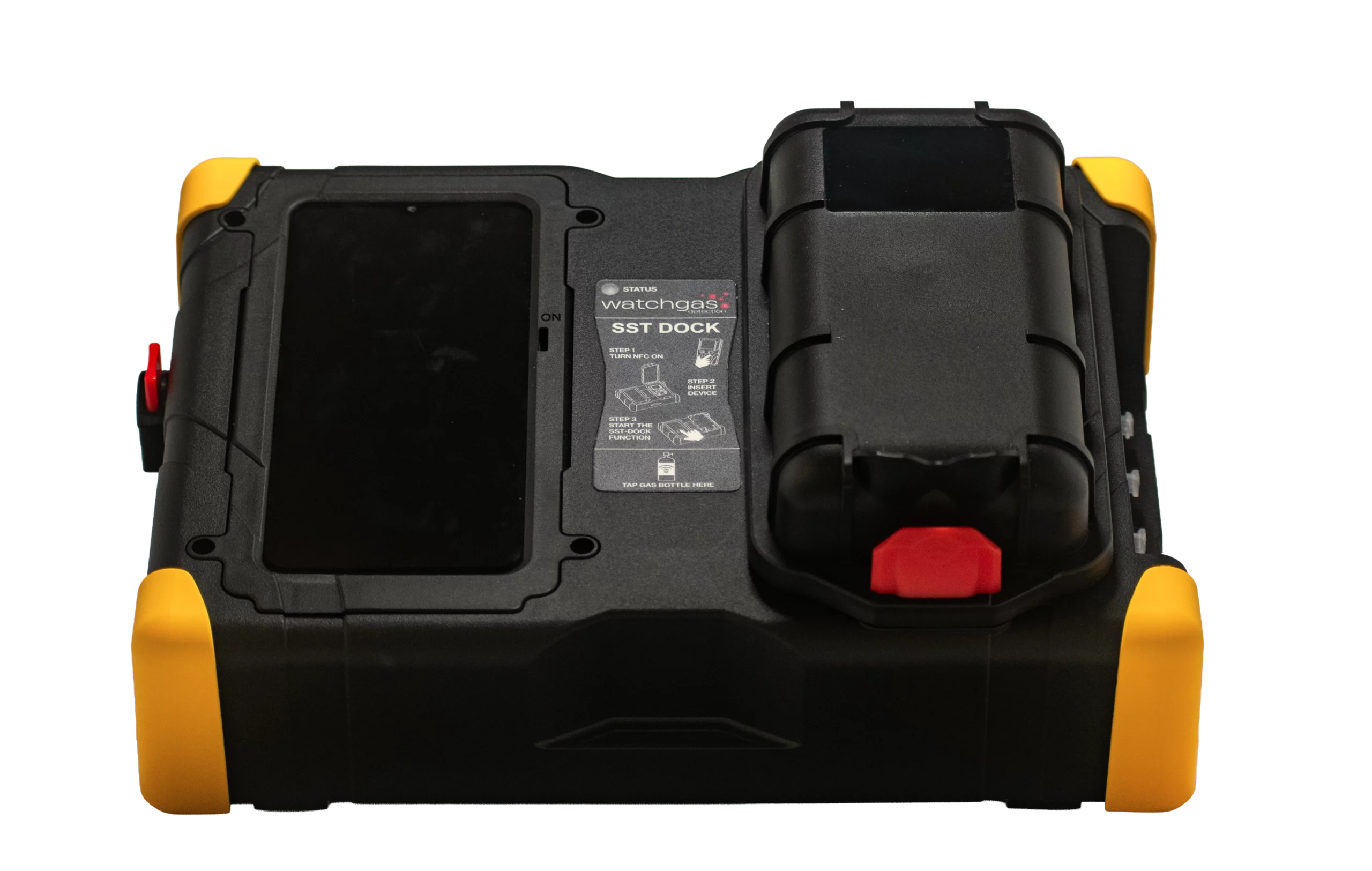

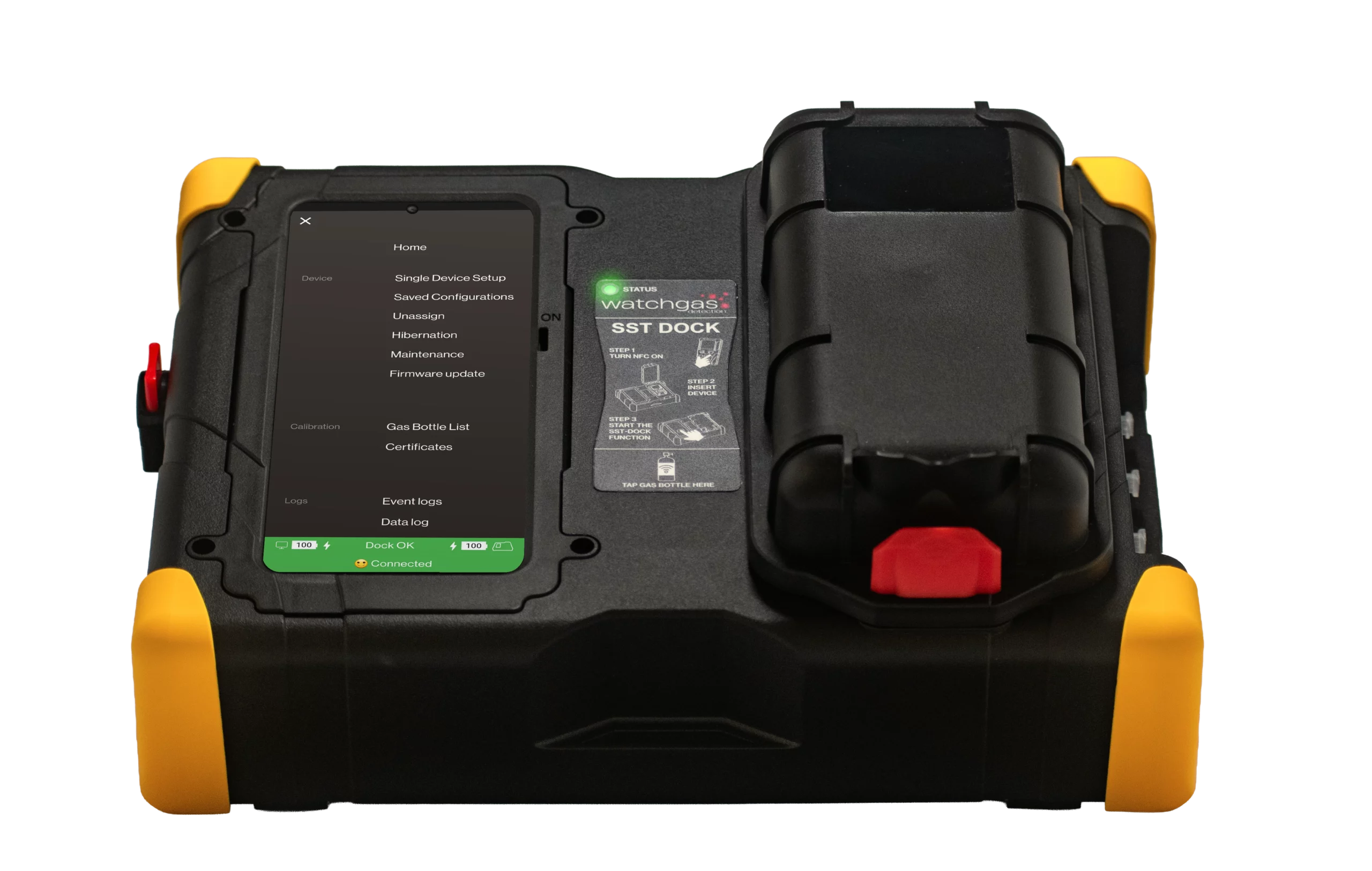

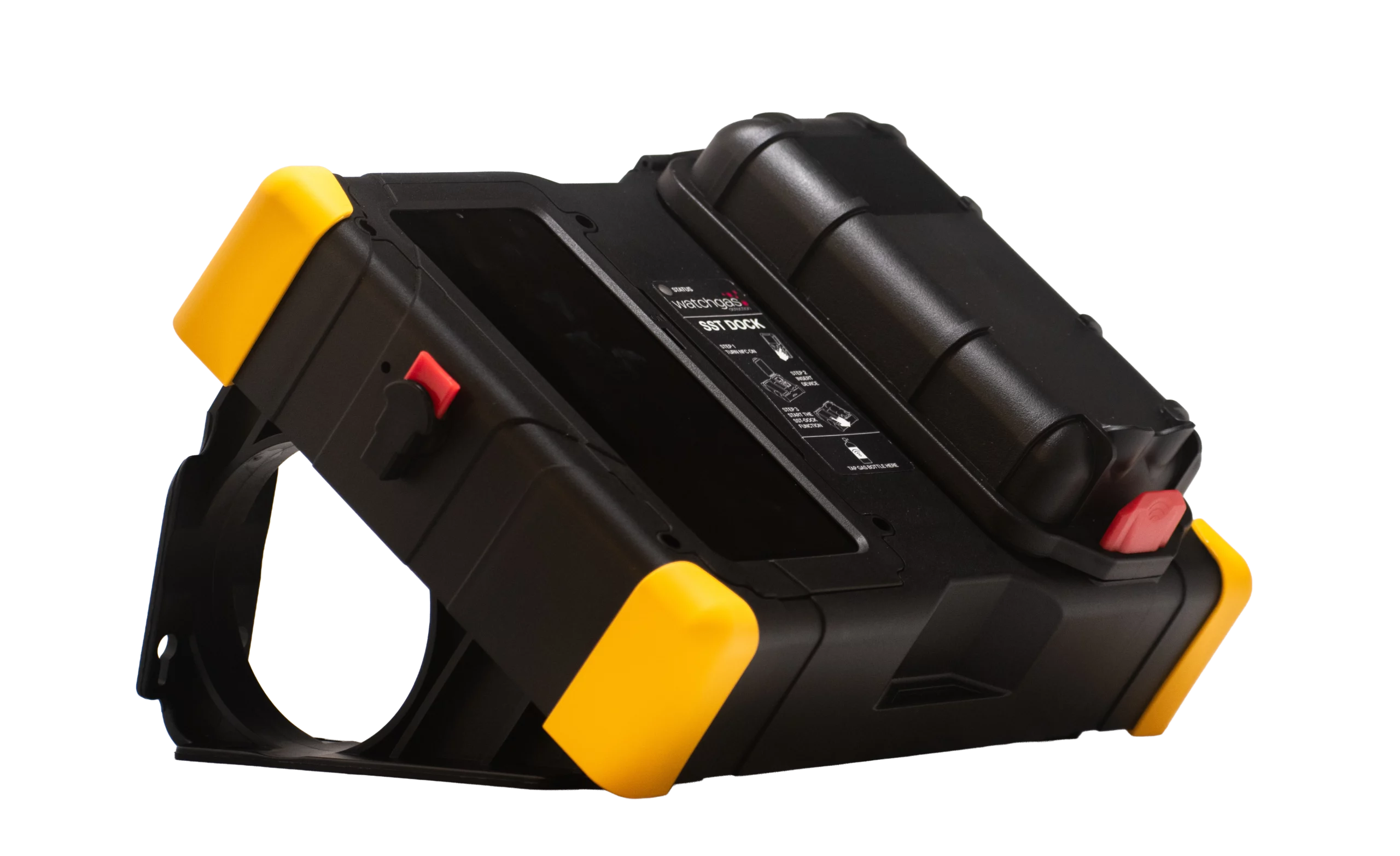

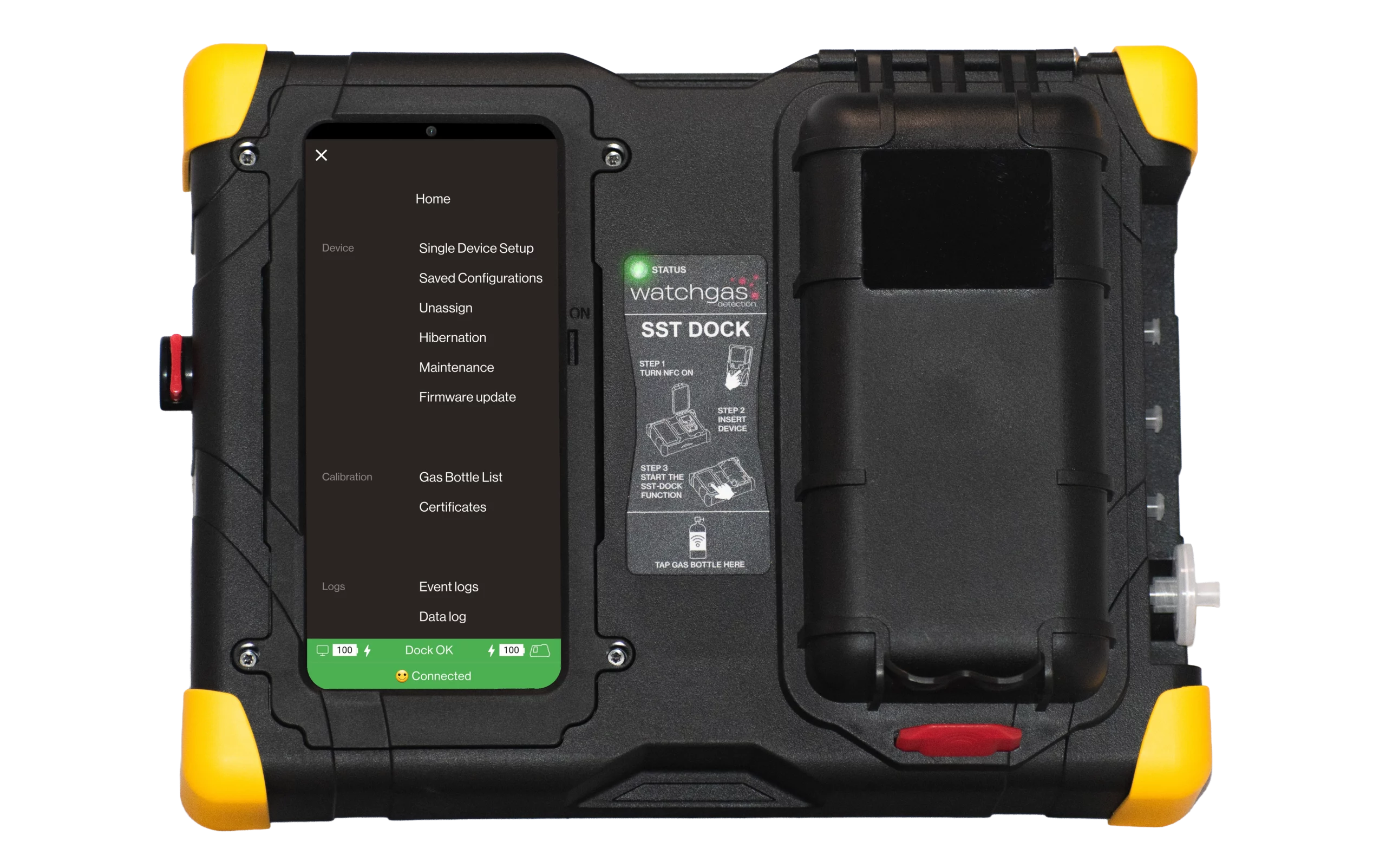

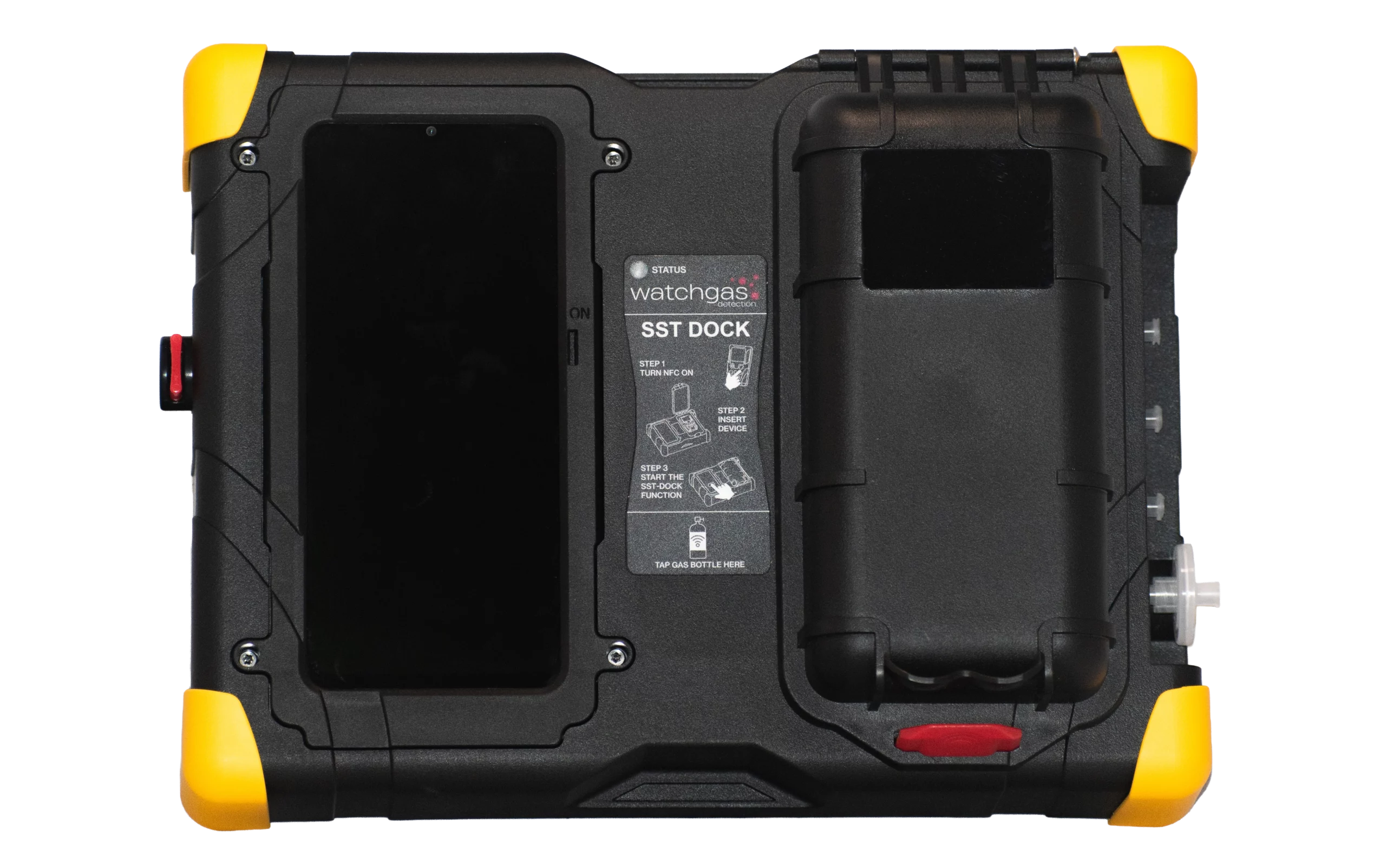

SST Dock
The SST Dock is an automated test station that allows Bump and Calibration testing and is compatible with the full SST Range in one module. It has the capability to be connected via Wi-Fi, BLE or Cellular and allows for desk, wall and hard case mounted dependent on your application.
- Easy setup
- Rapid bump
- Connectivity
- Platform design
- Low gas notification
- Mounting options
Description
SST Dock is Bump, Calibration and configuration station that is designed to carry out daily compliance checks of your gas detection fleet or for use as a service provider that have a large customer fleet to maintain. The SST Dock is compatible with SST-1, SST-4 (all models), SST-4 Pump and SST-5, meaning one docking solution for your entire fleet and reducing infrastructure costs.
SST Dock also offers total flexibility, allowing for a standalone solution where the data can be captured and interrogated at a dock level or connected to the WatchGas cloud-based software. This software lets you have a complete fleet overview and be notified of non-compliance from bump and calibration expiries, gas alarms, or even showing when test gas is running low. With options for the system to be used on a desk, wall mounted, or portably in a hard case giving you up to 100 calibrations from one charge; it has never been easier to ensure the uptime of your gas detection fleet.
This compact yet rugged solution can be tailored from a simple bump test station to a sophisticated connected test station giving you constant updates of your fleet health and compliance status.
Product information
- Easy setup
- Rapid bump
- Connectivity
- Platform design
- Low gas notification
- Mounting options
| Dimensions (LxWxH) | 28 x 21 x 10 cm (11 x 8.2 x 4 in.) |
| Weight | 1.8 kg (63.5 oz.) |
| Temperature | +5-40 °C |
| Humidity | 0% to 90% RH |
| Storage Temperature | 0-50 °C |
| Power Supply | 12 V 1,5 A |
| Real Time Clock | Yes, updateable |
| Data Storage | More than 1 year of operation |
| Connection Capability | Wi-Fi, Cellular, BLE – Connected into the Cloud and WatchGas App |

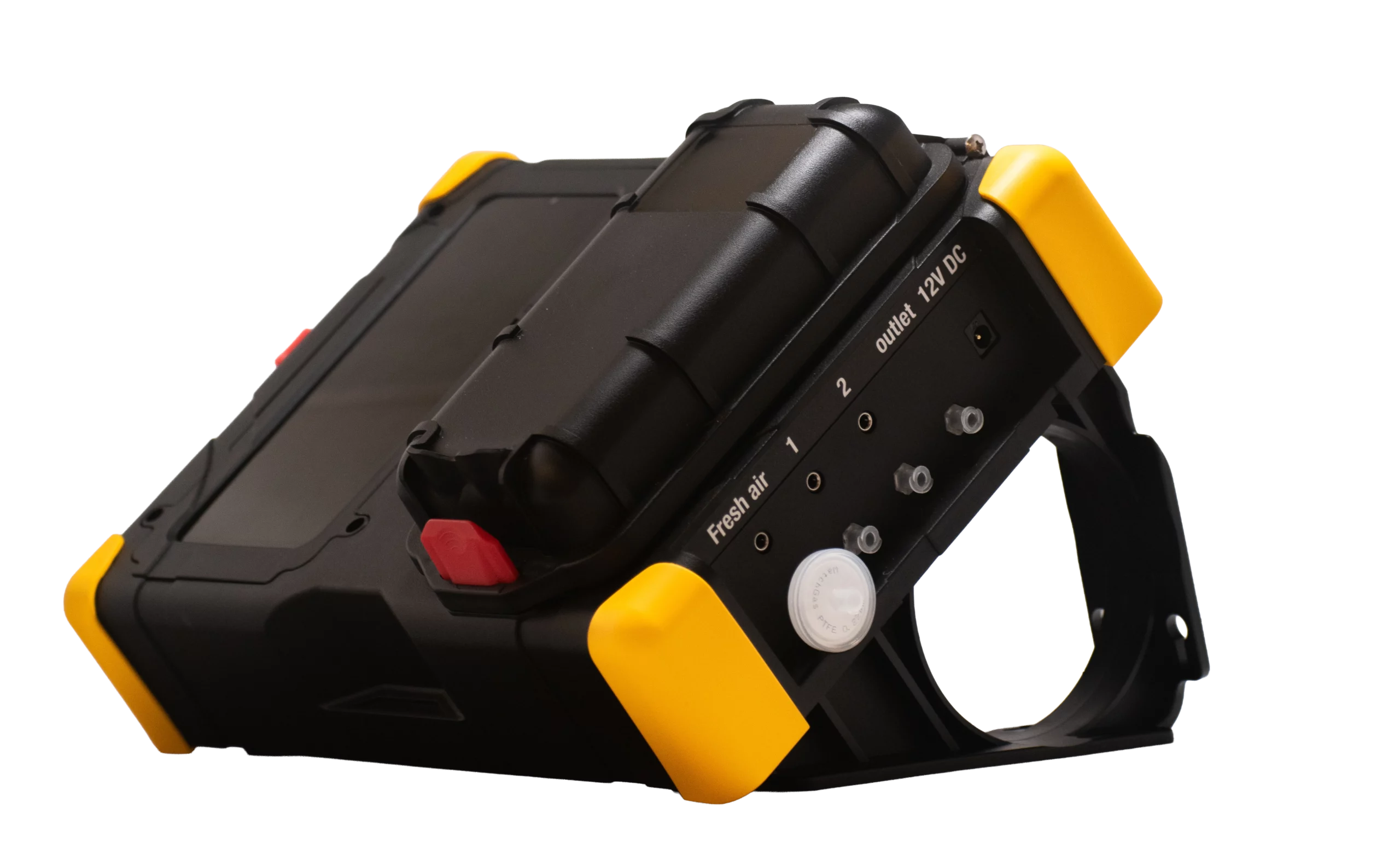

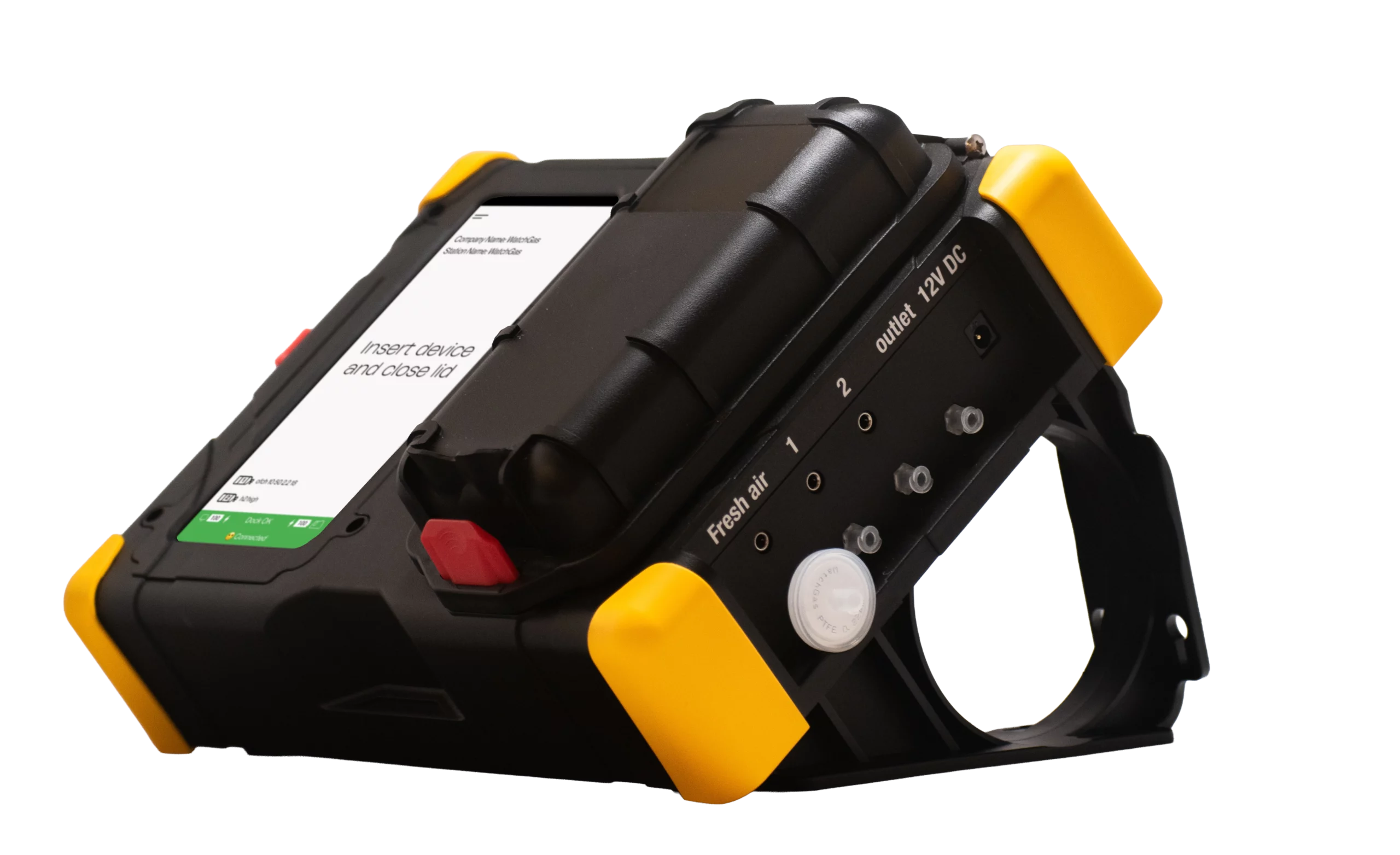

| Gas Inlets | Fresh air inlet, 2 Gas inlets and one purge |

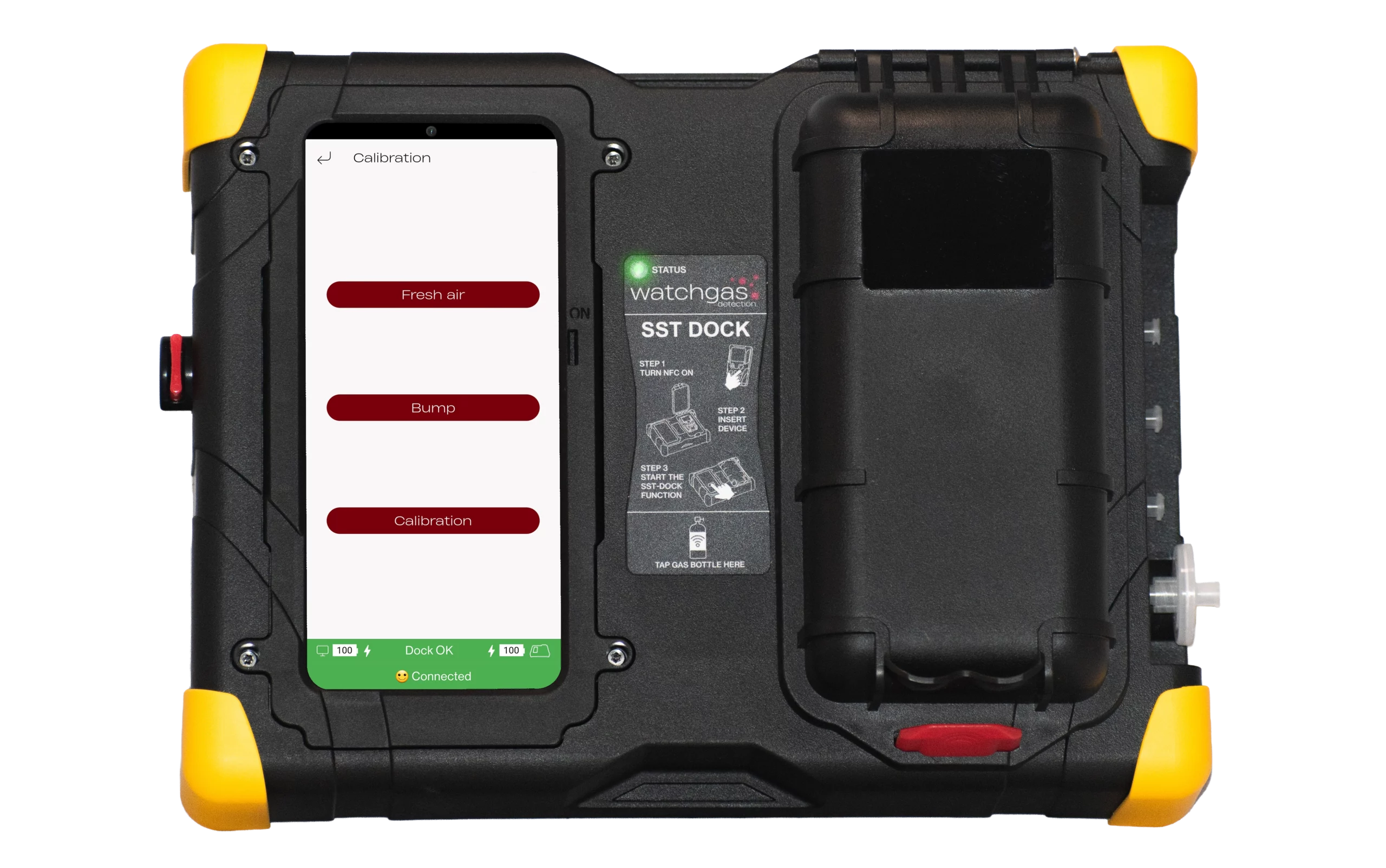

| Testing Function | Bump Test, Calibration (optional), Device Configuration and Data Download. Also tests device Alarms, Visual LEDs |
| Device Compatibility | One module compatible with SST Range |
| Certifications & Approvals | EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU FCC Part 15 RoHS Directive 2011/65/EU |
| Warranty | 2 years |
SST Dock
SST-Dock – WatchGas SST Docking Station for SST1/SST4/SST4 Pumped Touch Screen
SST-Dock-KIT – WatchGas SST Docking Station for SST1/SST4/SST4 Pumped In Hard Case with Space for 2 Gas Cylinders and DFR
