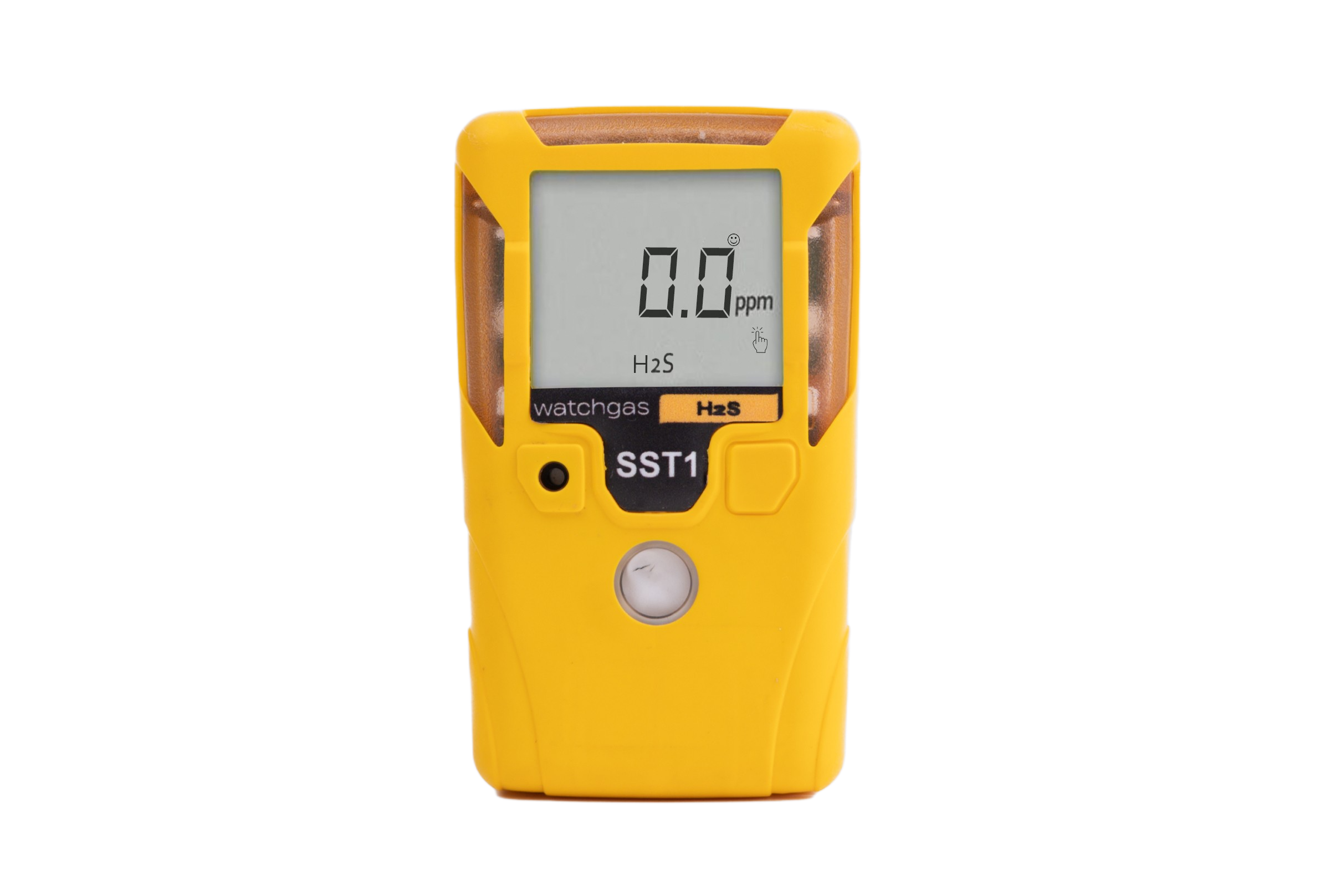

SST1: Serviceable

The SST1 Serviceable offers one of the most cost-effective solutions on the market. With its 3-year replaceable battery and solid polymer sensor technology the SST1 offers a compact and modular design, while not compromising on its ruggedness.

  • TWA & STEL Alarms
  • NFC and WatchGas Application
  • 3-year battery life based on alarms
  • Serviceable Battery and Sensors
  • Available sensors: CO, H2S, O2, SO2, H2 (low-range), NH3, PH3, CH4S

Description

The SST1 Serviceable offers one of the most cost-effective solutions on the market. With its 3-year replaceable battery and solid polymer sensor technology, the SST1 offers a compact and modular design without compromising its ruggedness. The SST1 Serviceable can be configured to your needs with one simple tap of the NFC and paired with the WatchGas Application. Monitoring for Low, High STEL, and TWA the SST1 will indicate any immediate risks and long-term exposure to toxic gases. SST1 is the platform that will allow us to expand on up to 8 different gases, so this is the ideal solution for your application.

Product information

  • TWA & STEL Alarms
  • NFC and WatchGas Application
  • 3-year battery life based on alarms
  • Serviceable Battery and Sensors
  • Solid Polymer Sensor Design
  • Largest LCD display
  • External Filters
Size 83 × 49 × 20 mm (3.3 × 1.9 × 0.8 in)
Weight 88 g (3.1 oz)
Temperature CO, H2S, O2 SO2: -40°C to +60°C (-40°F to +140°F) / Others: -20°C to +60°C (-4°F to +140°F)
Humidity 5 ~ 95 %RH (Non-condensing)
Response time T90 H2S, CO, O2, PH3 H2: < 10 sec CH4S: <40 sec SO2: <55 sec NH3: <130 sec Other sensors may vary
Battery life O2: 2 years H2S, CO, SO2, NH3, H2, PH3, Ch4S: up to 3 years, dependent on gas alarms
Event logging Last 100 events
IP IP67-68
Communication NFC
Shelf life 1 year
Certifications & Approvals ATEX, IECEX, UKEX II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma 0344 Int.Safe: Cl I Dv 1, Gr A,B,C,D T4 CSA C22.2 NO. 60079-0 CAN/CSA C22.2 NO 60079 UL 61010 safety requirements CAN/CSA-C22.2 NO 61010-1-12 Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU
Warranty Instrument: 3 years Battery: 2 years based on 1 min of alarm per day Sensors: SO2 2 years, PH3: 1 year, NH3: 1 year, CH4S: 1 year, H2: 2 years, Other sensors: One year shelf life then two or three years from activation date depending on device type.
Sensor Gas measuring range Low alarm level High alarm level
H2S 0 - 500 ppm 10 ppm 15 ppm
CO 0 - 2000 ppm 35 ppm 200 ppm
O2 0 - 25.0 % by vol. 19.5 % 23.5 %
SO2 0 - 100 ppm 5 ppm 10 ppm
Ch4S 0 - 100 ppm 2 ppm 5 ppm
PH3 0 - 20 ppm 1 ppm 2 ppm
NH3 0 - 100 ppm 25 ppm 50 ppm
H2 Low 0 - 1000 ppm 100 ppm 400 ppm
Sensors coming soon: - - -
CO2 - - -
NO2 - - -
NO - - -
CL2 - - -
HCN - - -
Xtox - - -
O3 - - -
ETO - - -
HCHO - - -
HF - - -
CIO2 - - -
AsH3 - - -
