Induction Disk Charger for the SST Range detectors

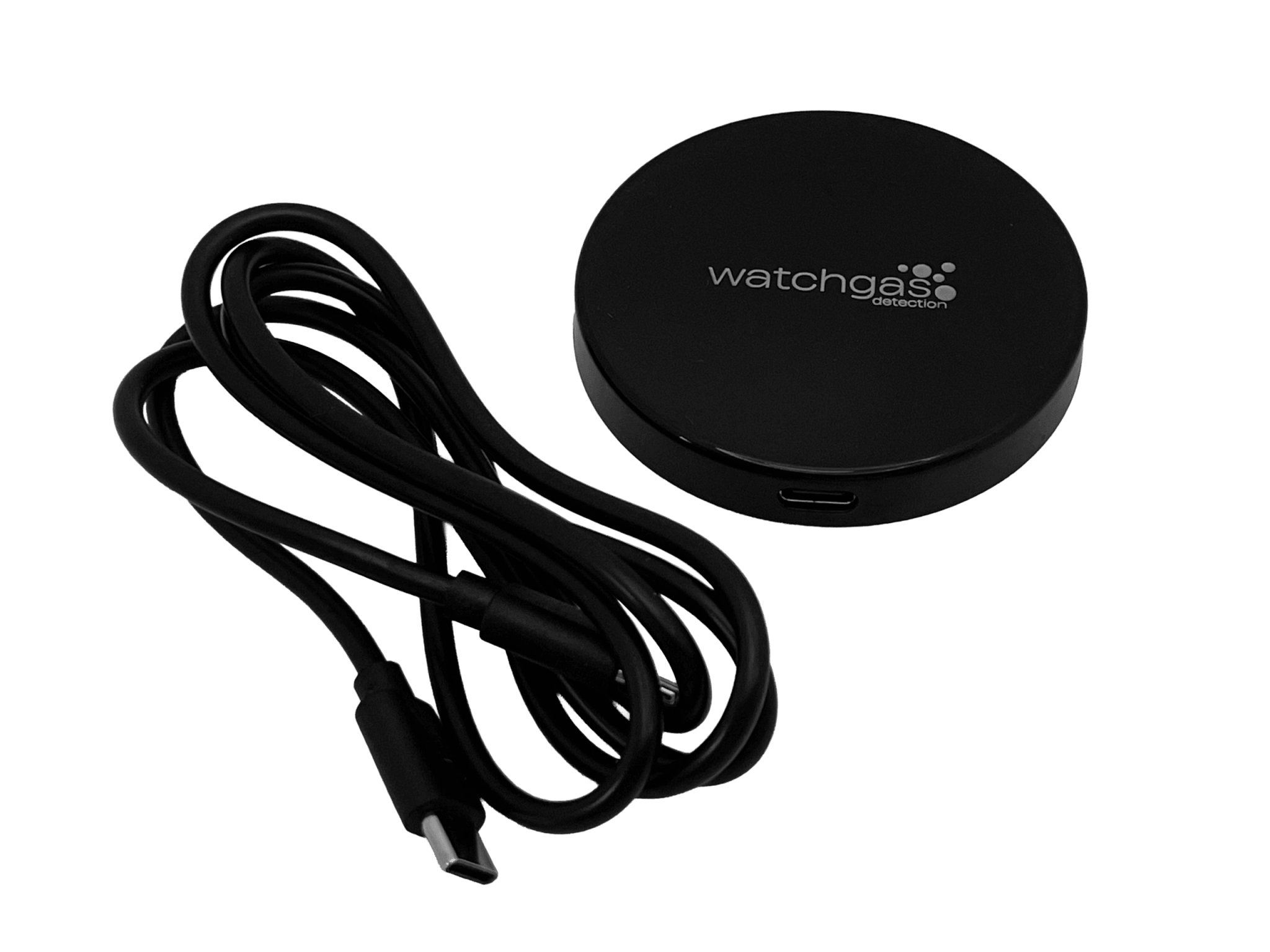

The WatchGas Induction Disk Charger is a compact wireless charger designed for the SST Range portable multi-gas detectors. It keeps SST detectors fully charged and ready for use while eliminating exposed charging contacts for improved durability in industrial environments. The charger features a USB-C connection and includes a USB-C cable.
Description
Induction Charging
Reliable wireless induction charging eliminates exposed charging contacts, reducing wear and preventing connector damage in harsh industrial environments. The simple drop-on design provides fast, convenient, and effortless charging for SST Range gas detectors.
Foreign Object Detection
Built-in Foreign Object Detection (FOD) continuously monitors the charging surface for metal objects. If a foreign object is detected, charging automatically stops and resumes only after the object has been removed, providing an additional layer of safety.
Safety
Advanced intelligent charging continuously monitors voltage, current, and temperature throughout the charging process. Integrated protection against over-voltage, over-current and over-temperature ensures safe, reliable charging and helps protect both the charger and the gas detector.
Compatibility
Designed for maximum flexibility, the Induction Disk Charger supports wireless charging across the complete SST Range, including the SST4 Micro, SST4 Mini, SST4 Pump and SST5, using a single charging solution.
Product information
The WatchGas Induction Disk Charger is compatible with all SST Range portable multi-gas detectors, including:
| Dimensions | 63.7 x 63.7 x 9 mm (Disk) |
| Cable length | 1 m |
| Weight | 35 g (Disk only); 55g (Disk and Type-C Cable) |
| Input current | 5 V / 2 A |
| Charging interface | Type-C |
| Conversion efficiency | Max 75 – 82 % |
|
Induction Disk Charger - Datasheet |
