GFP-10 ATEX Certified Pump

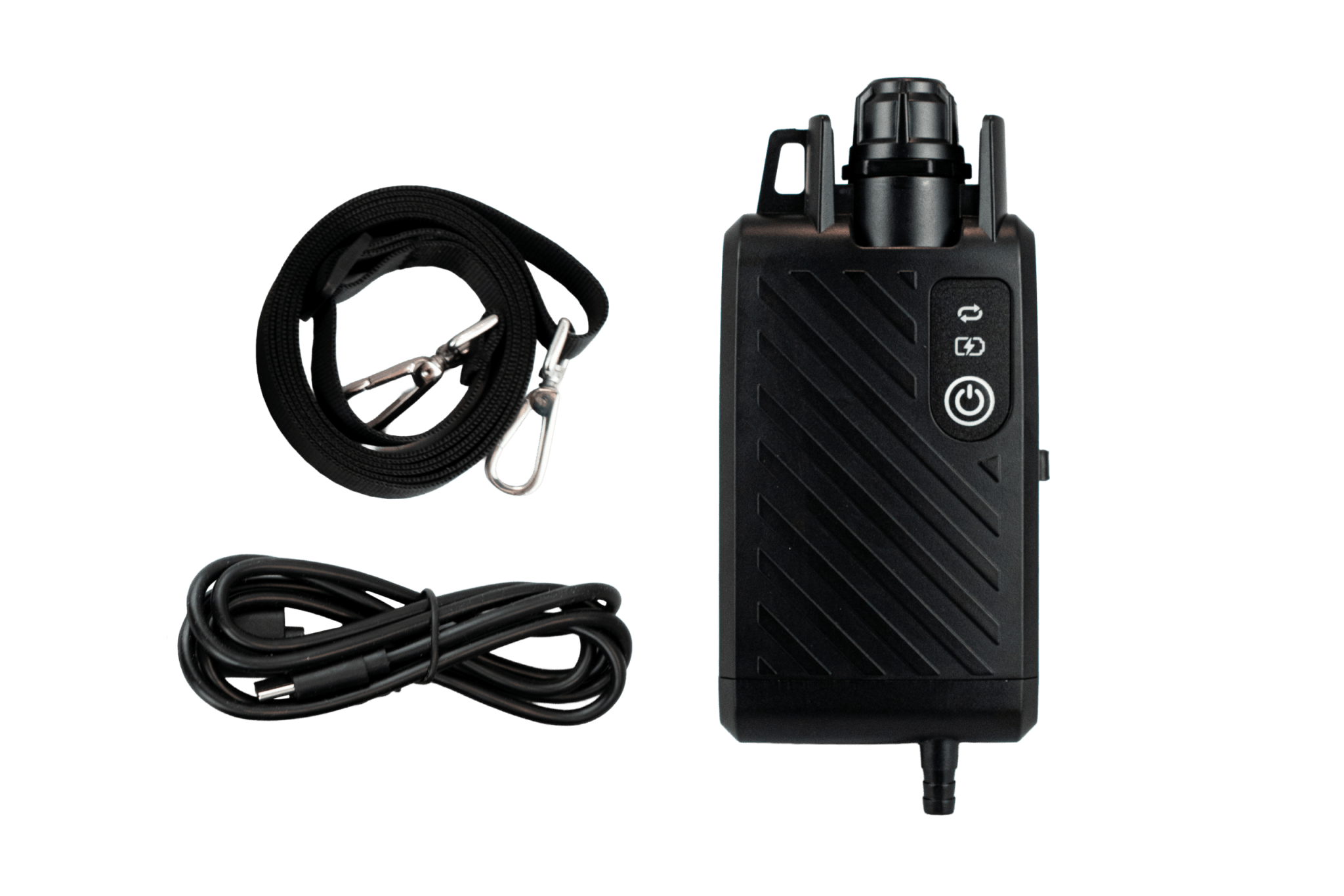

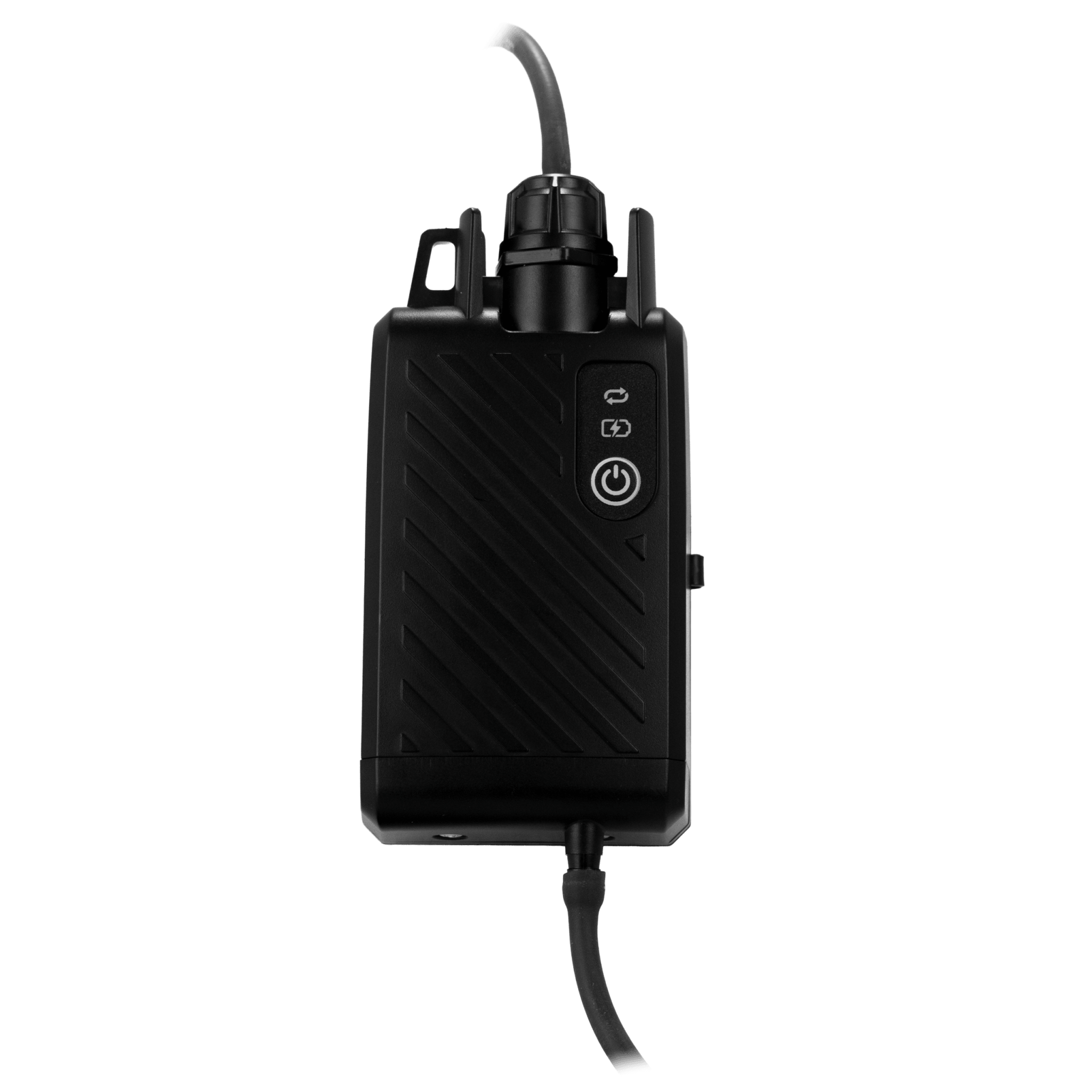

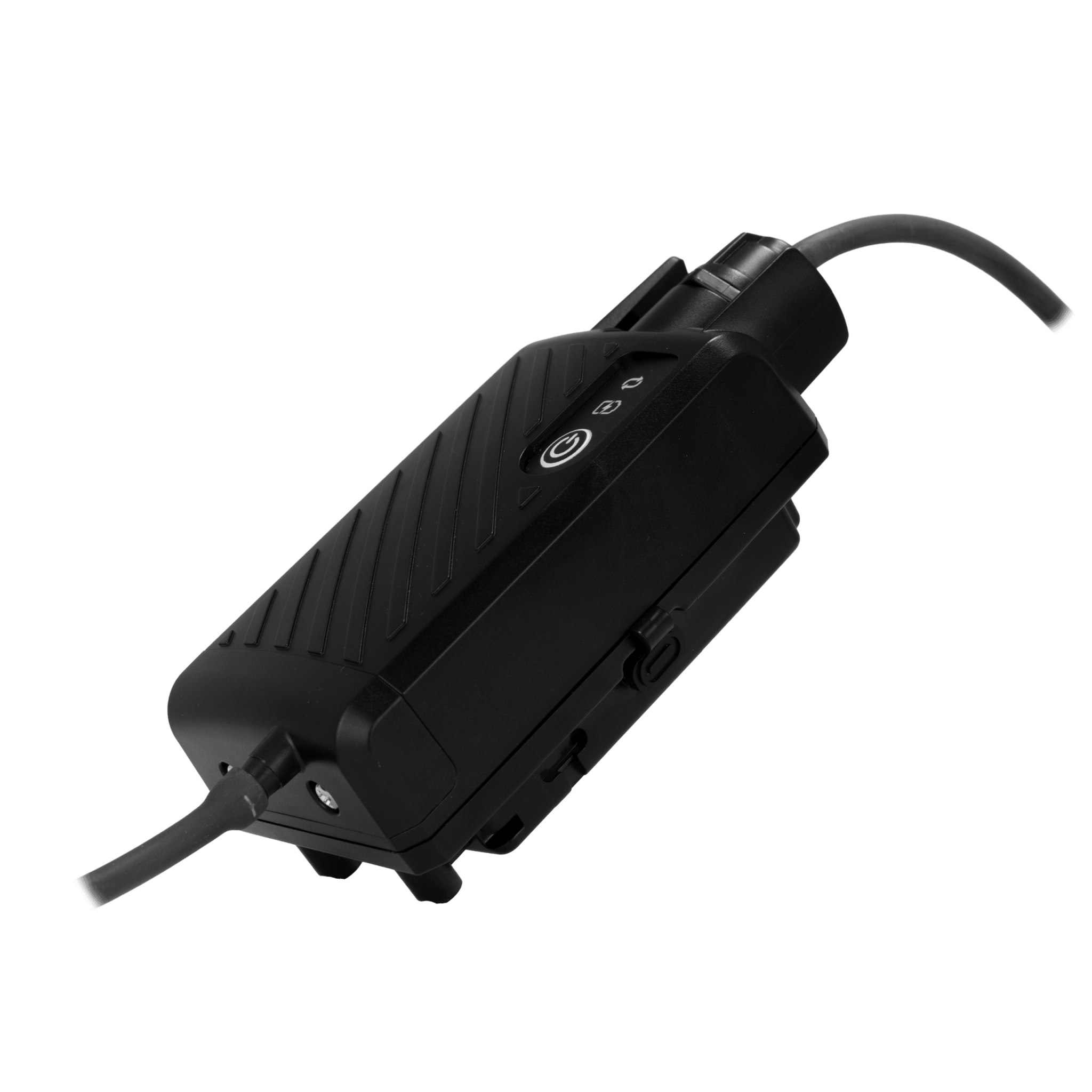

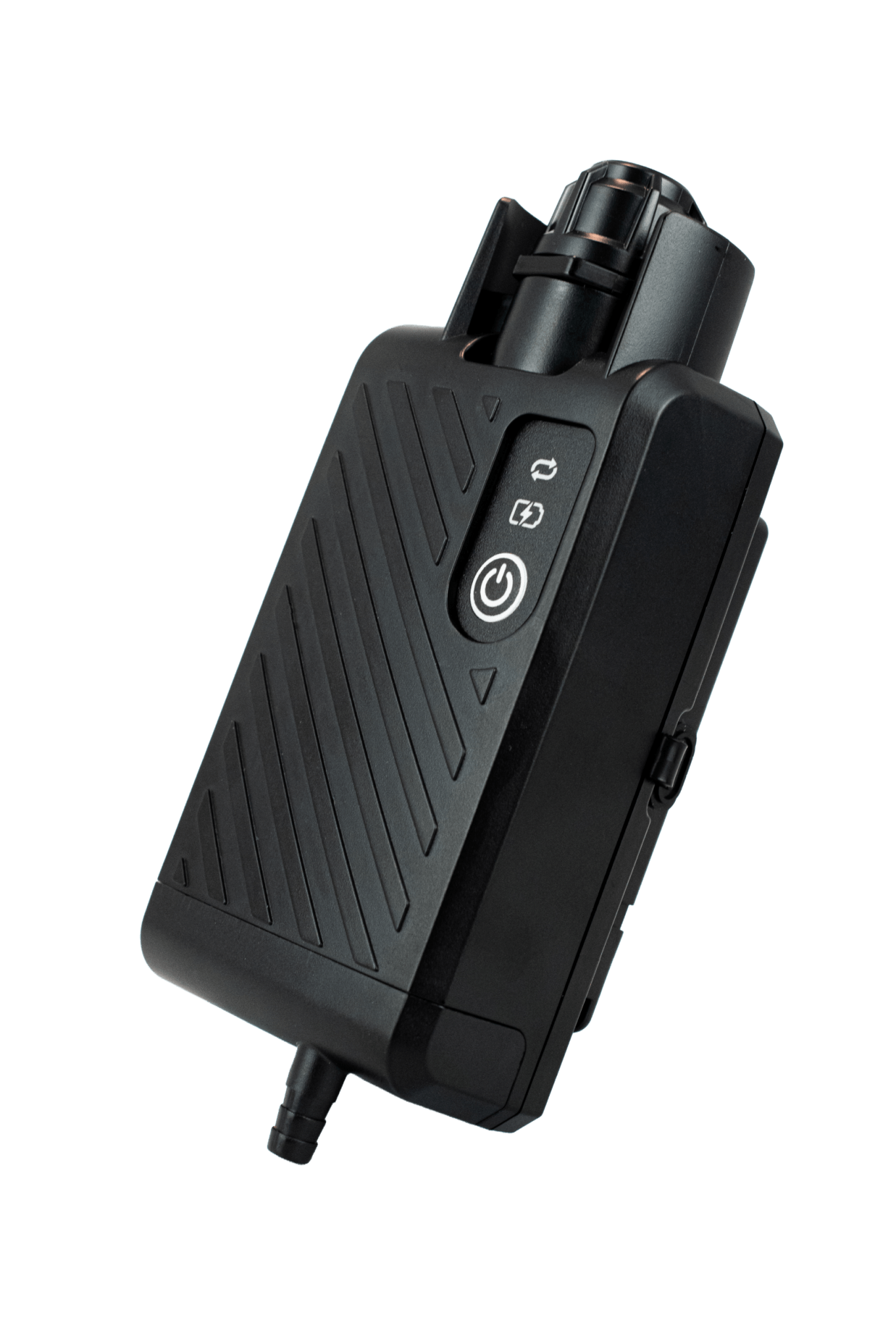

The GFP-10 ATEX Certified Pump is a motorized, portable external pump for gas detectors, designed to convert diffusion gas detectors into sampling devices. It enables gas detection in hard-to-reach or confined areas by drawing air through a hose directly to the detector for analysis.
- Sampling Conversion – Turns diffusion detectors into sampling devices
- Versatile Use – Suitable for confined and hazardous environments
- Easy Operation – One-button control with LED status indication
- Long Runtime – Up to 20 hours, USB-C rechargeable
- Wide Compatibility – Works with multiple detectors and fixed systems up to 15 m
Description
The GFP-10 draws air through a connected hose and delivers it to the gas detector for analysis, allowing users to test environments remotely before entering. This improves safety in confined spaces and hazardous areas while maintaining flexibility across different applications.
Designed for industrial use, the pump supports various configurations and can be used with both portable and fixed detection systems, including devices from other brands.
Product information
Applications
Ideal for confined space entry, pre-entry gas checks, and remote sampling in hard-to-reach or hazardous areas.
Compatible Devices

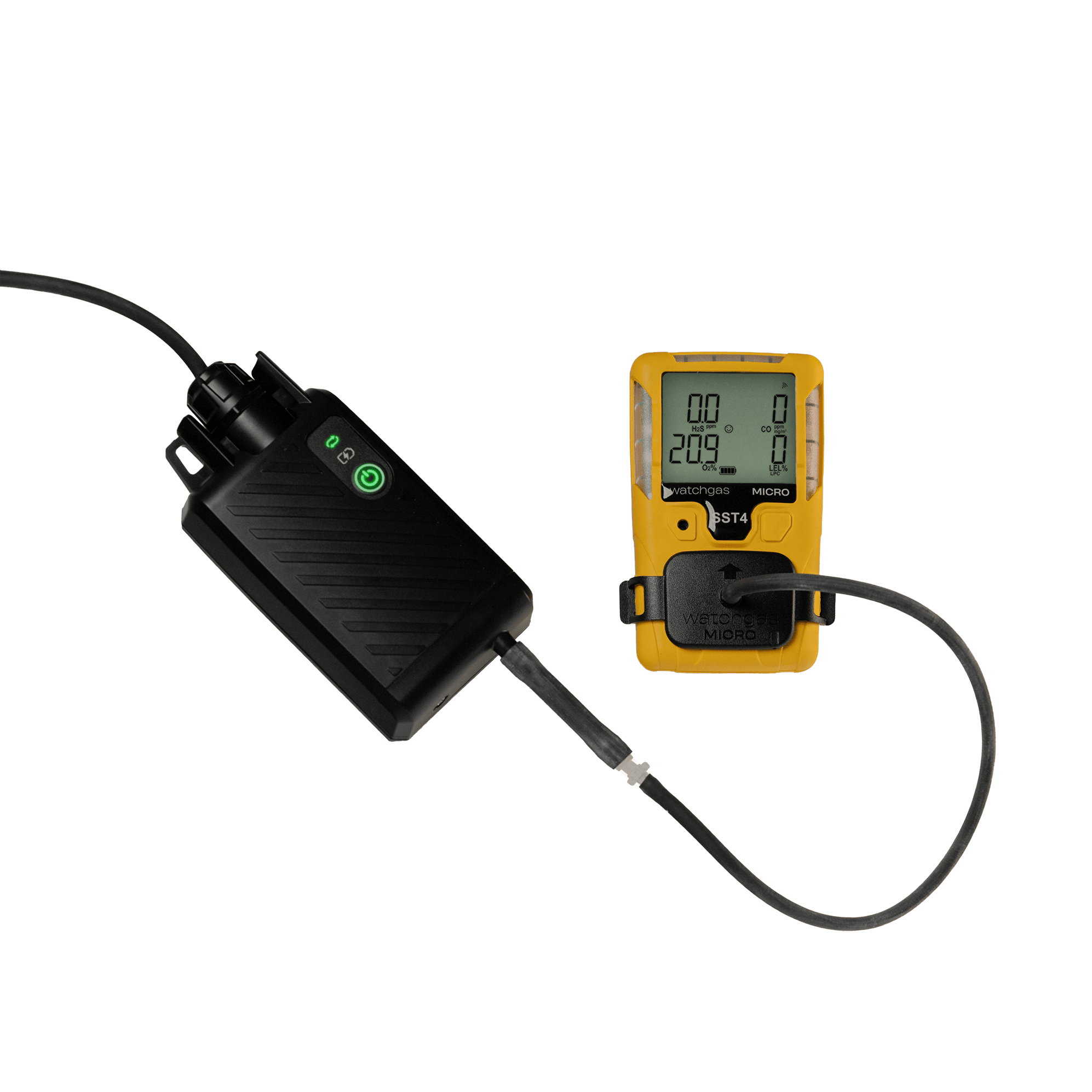

Works with SST1, SST4 Micro, SST4 Mini, and other compatible gas detectors.
Accessories
Supports Last-o-More hose, Reducer set, Ball Floater for various sampling requirements.
Usage
Portable and easy to deploy; connects directly to gas detectors or fixed systems for flexible operation.
| Dimensions | 61 × 136 × 41 mm |
| Weight | ~208 g |
| Operating temperature | Detection: -20 ~ 50°C Recharge: 0 ~ 45°C Storage: -20 ~ 25°C |
| Operating humidity | 5–95% RH |
| Protection Rating | IP67 |
| Flow Rate | 0.4 L/min (fixed) |
| Maximum Tube Length | 15m |
| Tube Specification (I.D. x O.D., W.T.) | 3.18 x 4.76, 0.8 mm 3.18 x 6.35, 1.6 mm |
| Battery | Rechargeable lithium-ion |
| Charging | USB-C (5V) |
| Charging Time | ~7.5 hours |
| Runtime | ≥20 hours |
| GFP-10 | Motorized Rechargeable ATEX Pump. 3×5 mm tubing and reducer set required for operation (not included) |
